When Dependable Performance is Critical

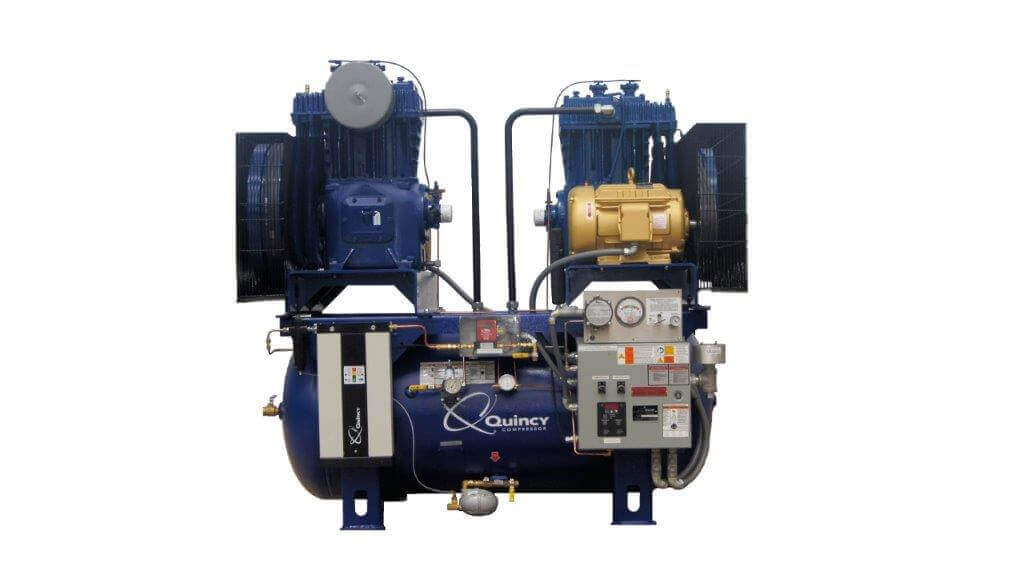

LArge-scale Instrument Air Unit with Quincy Reciprocating Compressor

Flow capacities 27.5 to 88.8 ICFM x2
Horsepower ratings 10 to 25
Pressure rating 240 PSIG

Instrument Air Unit - TIA-SA/QR

TIA-SA/QR Series

TESCORP “TIA/SA-QR” Series systems are designed and constructed for a dual application to supply both compressor high pressure starting air and then supply the site with instrument air. With a duplex compressor arrangement, the combined volumes allow large capacity air supply for the engine starting application and then 100% standby capacity of field instrument air needs. Designed and constructed with the Quincy pressure lubricated reciprocating compressor in a duplex 100% redundant configuration, the TESCORP TIA-QR series provide continuous air supply with the capabilities to supply 200% flow rates upon demand.

Instrument Air Unit Features and Options:

  • Two (2) Quincy “QR-25 Series HP (High Pressure)” pressure lubricated, two-stage reciprocating compressors rated @ 250 Psig.
  • One (1) Quincy QMOD “Heatless Regenerative” dryer rated -40o F Dewpoint
  • One (1) “Wet Air” air receiver
  • One (1) “Dry Air” air receiver
  • One (1) Automatic electronic “no loss” condensate drain valve
  • Inter-connecting piping, valves, gauges and relief valves
  • Common electrical connection box with circuit breakers and control transformer
  • Weatherproof protection on all electrical components

Instrument Air Unit Features

TIA/SR-QR Model Number

  • TIA/SR-QR-10 D
  • TIA/SR-QR-15-D
  • TIA/SR-QR-20-D
  • TIA/SR-QR-25-D

Horsepower

  • 10 Hp
  • 15 Hp
  • 20 Hp
  • 25 Hp

Air Capacity (ICFM) @ 240 Psi

  • 27.5 lcfm x 2
  • 41.5 lcfm x 2
  • 58.5 lcfm x 2
  • 88.8 lcfm x 2

Wet Air Storage

  • 120 Gallon
  • 200 Gallon
  • 200 Gallon
  • 200 Gallon

Dry Air Storage

  • 120 Gallon
  • 200 Gallon
  • 200 Gallon
  • 200 Gallon
