When Dependable Performance is Critical

Customizable Single-Stage Rotary Vane Compressor System

Single-Stage Rotary Vane Compressor
25 to 300 Horsepower
27″ HgV Vacuum to 15 PSIG Inlet Pressure
Maximum Discharge Pressure 50 PSIG

Customizable Single-Stage Rotary Vane Compressor System

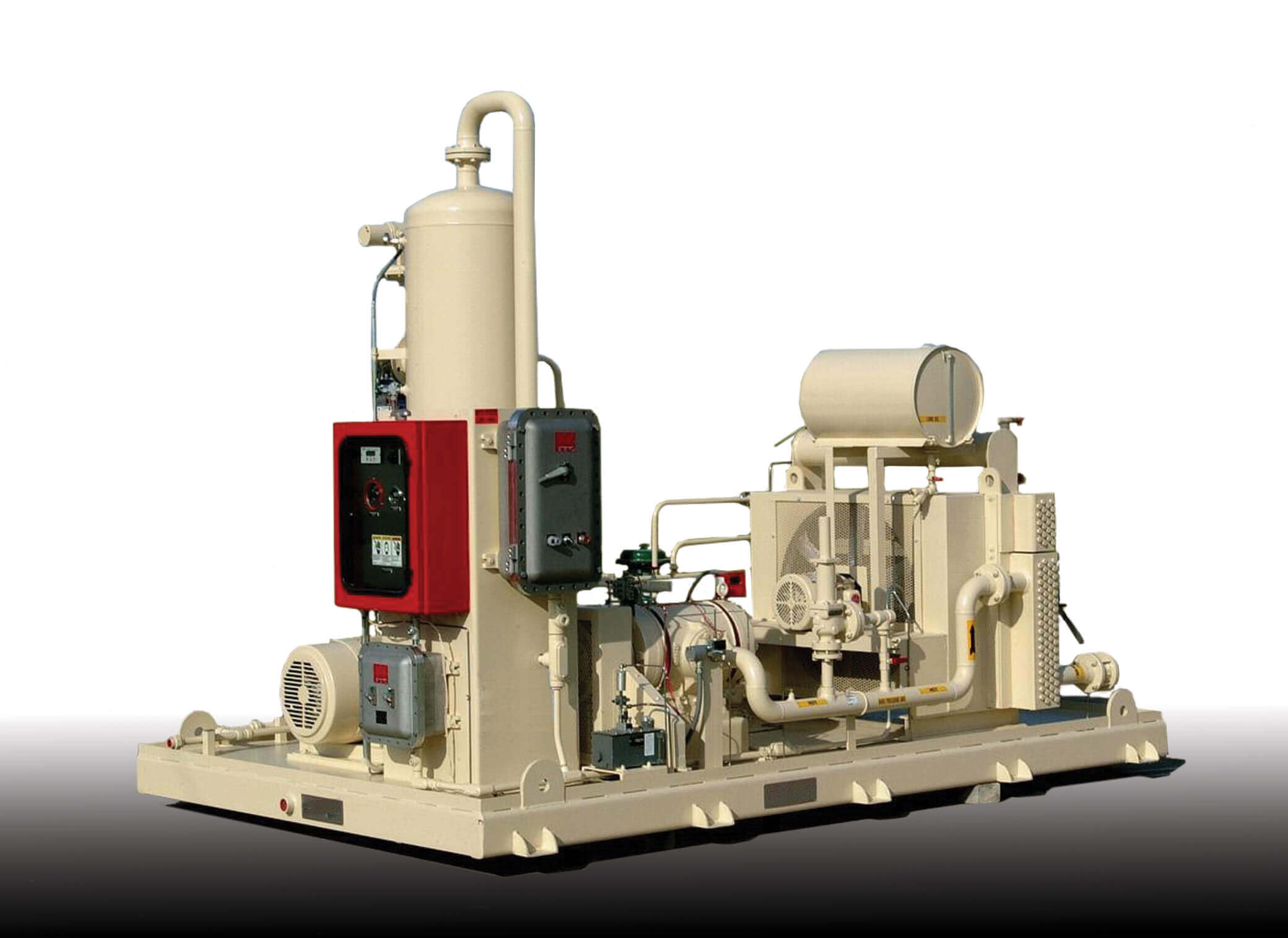

CVR-1 Series

The TESCORP “CVR-1” SERIES is a completely self-contained compression system for applications for stock tank vapor recovery, flare gas recovery, or medium pressure process gas application. Constructed with a rugged rotary vane compressor and TESCORP vapor recovery technology and components, the CVR-1 is a complete and fully-automated system for applications that require gas cooling, proportional capacity control, and sophisticated PLC driven control logic and communications.

The unit offers the following design and optional features:

Single-stage rotary vane compressor with:

  • Liquid-cooled for continuous duty
  • Oil-lubricated compressor
  • Mechanical seal
  • Special vapor recovery heads for saturated gas applications

Force feed lubrication system complete with:

  • Progressive flow type divider block lubricator, manifold, filter, and oil storage reservoir
  • Oil flow indicators, flow monitor, and controls

Premium efficiency electric motor drive with:

  • TEFC enclosure, NEMA “B” torque, 1.15 service factor
  • Inverter duty for application with “VFD” drive

Suction scrubber constructed per the following:

  • Designed, constructed, stamped and National Board Certified per ASME Section VIII
  • 1/8” corrosion allowance
  • 316 SS mist eliminator
  • Condensate level controls, gauges, pump rated for flow and pressure

Heat exchanger assembly complete with the following:

  • Gas after-cooler for 30°F at 100°F ambient approach, motor and manual louvers
  • Designed, constructed, stamped and National Board Certified per ASME Section VIII
  • Closed loop compressor jacket water cooling system for continuous 24/7 duty

CVR-1 unit Construction:

  • All electrical components and wiring per NEC Class I, Division II, Class B, C, & D
  • Skid assembly conforms to ASTM A-36 requirements
  • All rotating equipment is fully protected with non-sparking guards
  • All units receive a complete mechanical/control run test with documentation

Options:

  • Sour or corrosive gas (NACE compliant)
  • Controls and panels per customer preference
  • Motor starters and/or VFD drives
